Concrete Flow Table Test Set

portfolio
portfolio
Project Info
  • Construction Date: 2023
  • Location: Iraq,zakho
  • Category: Labboratury Equipments

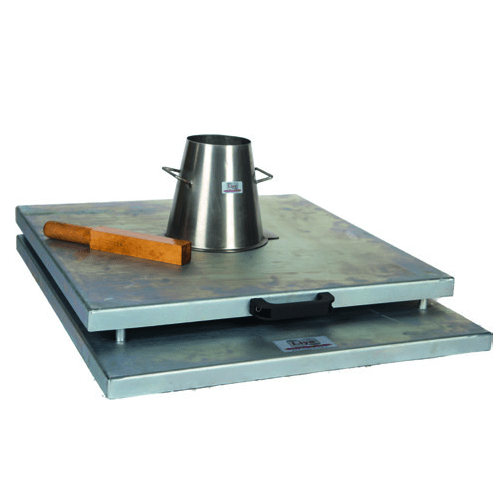

  • : The test set is used for concrete mixes of high workability. The test determines flow index as an arithmetic mean of the diameter of the specimen after working on a flow table. The apparatus consists of a double steel table, the upper table measuring 700×700 mm and hinged at one side to the lower table. The top table is inscribed and all parts are protected against corrosion. The stainless steel cone has a top Ø 130 mm, base Ø 200 mm, 200 mm high and 1.5 mm thickness. Dimension of wooden tamper is 40x40x200 mm and its holder is 120 mm. Supplied complete with Flow Cone and Wooden Tamper.
